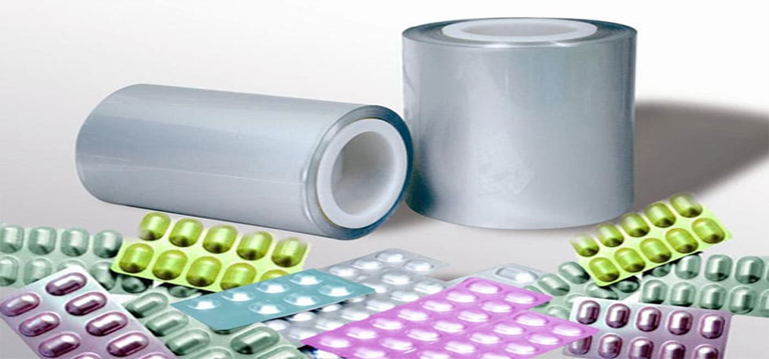

Alu Alu Base Foil Printing
We manufactures a range of hard Aluminium in a completely hygenic condition which can effectively protect from moisture, micro-organisms, light, oxygen and other gases making it a primary material in the protective packaging of tablets, Capsules and injectables.
End Uses
- Pharmaceutical Products
- Tabletes
- Capsules
- Strip packed
- Creams
- Ampoules
- Dressing
- High performance membrane for pharmaceutical closures
- Confectionery like schewing chiclets
Specifications
| Aluminium Blister Strip Foils Specification | |
|---|---|
NOMENCLATURE |
Hard Tempered Aluminum foil coated with Heat Seal Lacquer on one side for sealing with PVC/PVDC and Clear lacquer coated on the other side for Printing |
END APPLICATIONS |
1.Blister Packing of Pharmaceutical Products such as Tablets and Capsules 2. Confectionery packing like Chewing Chicklets |
HEAT SEAL LACQUER OPTIONS |
Poly Vinyl Chloride (PVC) and Universal Lacquer |
PARAMETERS |
Specification Values and Details |
Foil Thickness , Grammage & Tolerances |
20 Microns- 54.20 GSM (Tolerance ±8%) 25 Microns- 67.75 GSM (Tolerance ±8%) 30 Microns- 81.30 GSM (Tolerance ±8%) |
HSL Coating |
4 to 6 GSM OR 6 to 8 GSM (as per the customer need) |
Bond Strength with PVC or PVDC |
≤ 10 N (1000 grams/15 mm Strip)……(when sealed at 180°C, 0.5 second dwell time and 3-4 Bar sealing Pressure) |
Pin Hole Count |
20 Microns:70% of the reels with ZERO pin holes & the remaining may have maximum 10 only/ meter ² area. 25 Microns & 30 Microns: Zero Pin Holes |
Widths |
Unprinted: Can be supplied in any width from 45 mm to 925mm (Wandering Tolerance±1.0mm) Printed: Can be supplied in any width from 45mm to 610mm (Wandering Tolerance±1.0mm ) |
Printing Options |
1. Up to 8 Colours 2.Front and Back Registered 3. High Temperature Heat Resistance Printing. 4.UV Inks Printing. |
Winding |
Unprinted Foils: Surface for printing shall be on top side and Surface for sealing shall be on the reverse/bottom side. Printed Foils: Printed surface on the Top Side and the Sealing surface shall be on the revers/bottom side. |
IR SPECTRA Consistency |
100% |
Safe for Food Contact |
Shall be in accordance with BFR XXII, FDA-175-300 &EU Directive 2002 / 72 & 2005/79. |
Core Options |
PVC/PAPER/ALUMINIUM 76.2mm±0.5mm |
Reel Outer Diameter (OD) options |
Printed Foil: 250mm±10mm Unprinted Foils:250mm/300mm/400mm/500mm (±10mm) |
Identification Details |
Each Reel is Identified with Bar Code & with complete details of Batch Number, Product Details, Date of Manufacturing etc etc. |
Packing |
Safe and Sturdy Packing is ensured to withstand Transportation Hurdles |
Test Certificates |
Product Wise and Invoice Wise Certificate of Analysis with Actual Observed Values , accompanies each supply made to the customer. |
